Tower Internals Distillation Column Internals Column Internal Trays Packed

Brand Name : NAIKE

Place of Origin : JIANGXI

MOQ : 1 Set/Sets (Min. Order)

Price : CN¥315.18 - CN¥700.38

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A

Supply Ability : 5000 Set/Sets per Month

Delivery Time : 5-8 work day

Packaging Details : Plastic bag inside, carton or wooden case outside.

Material : carbon steel,plastic,Stainless Steel,Metal,304

Application : Petrochemical industry,Chemical industry,gasoline

Type : bubble cap tray,Ceramic Random tower Packing,customized

Size : customized,38mm,25mm,80/100/150mm or customized,16mm

Usage : Towers,vacuum distillation tower,Towers &RTO media,vapor liquid seperation

Package : Wooden box,Ton bags+Palletize,On request

Shape : Customized Shape,Cyliner

Response time : Within 24 hours

After-sales service provided : Yes

Advantages : big operation flexibility

Contact Now

Tower Internals distillation column internals column internal trays packed column internals bubble cap distillation colu

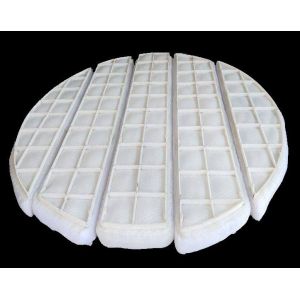

Tower Internals & Pad Mist Eliminator

Wire mesh demister, also known as a wire mesh mist eliminator, is a kind of vapor liquid separating device. It is widely used in the chemical, petroleum, medical, light, metallurgy and environmental protection industries.It is most often used to separate liquid drop with diameter of more than 3-5 μm in the separation tower.

Using: Chemical, petroleum, sulfate, medicine, light industry, metallurgy, machine, building, construction, aviation, shipping and environment protection.

Tower Internals Distillation Column Internals Column Internal Trays Packed

Specifications

Net Block Grid
Material Code Standard NO. Material Code Standard NO.
Q235-A Q235-A GB434 Q235-A Q235-A GB327
20 20 BG3206 20 20 GB711
0Gr18Ni10Ti 321 0Gr18Ni9 304 GB423
0Gr17Ni12Mo2 316 0Gr18Ni10Ti 321
00Gr19Ni11 304L 00Gr17Ni12Mo2 316
00Gr17Ni14Mo2 316L 00Gr17Ni14Mo2 316L
RS-2 RS-2 Steel Grades 00Gr17Ni14Mo2 316L
NS-8 NS-80 Non-metallic materials: PTFE (F6) polyethylene, polypropylene, Nylon yarn, glass fiber and PVC and so on.
Note: use other materials bearing the note when ordering
NS-80A NS-80A
Brass Wire H68, H65 GB310
Tin-copper Wire QSn GB3128
Nickel N4, N6, N7, N8 GB3120
Titanium and Titanium Alloy TA2, TA3, TC3, TC4 GB3623

Standard type

Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model :40-100 60-150 ,140-400
Common diameter :0.20-0 .45 mm
Form code: SP
Weight capacity: 168 Kg/m3
Specific surface area: 529.6 m2/m3
Porosity : 0.9788ε

High efficient type

Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model : 60-100 80-150 200-400 80-100 90-150
Common diameter : 0.12-0.45mm
Form code: HR
Weight capacity: 128 Kg/m3
Specific surface area: 403.5 m2/m3
Porosity : 0.9839ε

High Running type

Material: 302,304,304 L, 316,316 L, 317
Specifications are as follows:
Model : 20-40, 30-80, 40-120,50-120
Common diameter : 0.21mm
Form code: HR
Weight capacity: 168 Kg/m3
Specific surface area: 529.6 m2/m3
Porosity : 0.9788ε
